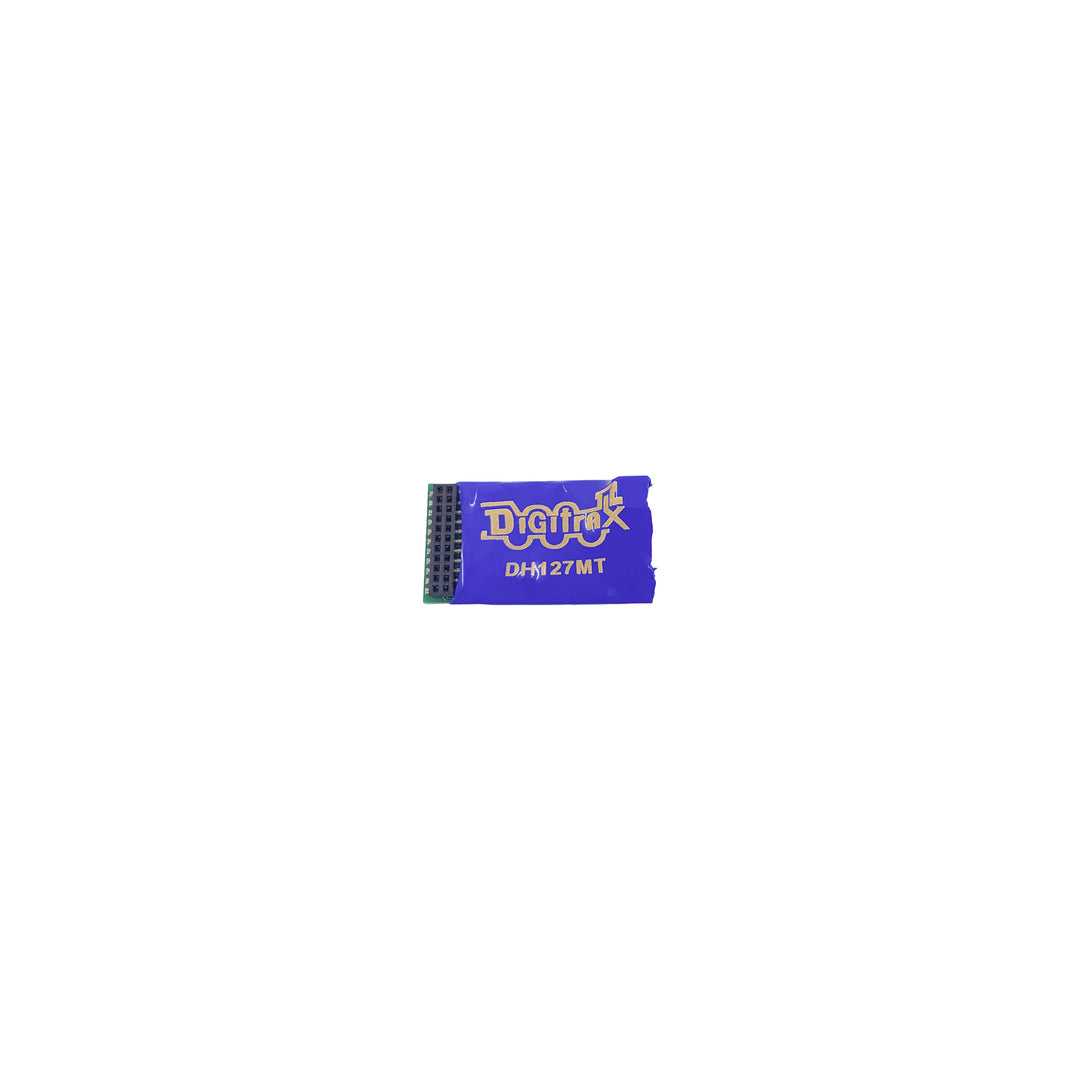

Digitrax, DH127MT, 1.5 Amp Mobile Decoder with 21MTC interface

DH127MT

Fits many 21MT equipped HO

locomotives

HO Scale

Mobile Decoder

Digitrax 21-pin MT socket

1.0 Amp/2 Amps Peak

2 FX7 Functions, 300ma Output

Features:

▪ 21-pin socket allows decoder to be easily moved between different locomo-

tives.

▪ Series 7 Enhanced Decoder Features.

▪ XF expanded function capability, allows user remap of function keys F0-28

to function output leads.

▪ Firmware may be user updated using a Digitrax USB equipped Command

Station with Sound Loader software in decoder IPL mode.

▪ 2 Digitrax FX7 Functions-Control lights and functions for prototypical light-

ing effects and on/off control.

▪ Configurable FX7 Pulse Function available on all function outputs.

▪ Digitrax LocoMotion® System – Lets your trains run like the real thing!

▪ 2 Digit and 4 Digit Addressing.

▪ Basic, Advanced & UniVersal Consisting.

▪ SuperSonic motor drive for silent operation.

▪ Direct and Operations Mode programming.

▪ Program CVs using any Digitrax Compatible Control system without having

to buy any extra equipment. Decoder Reset by CV8, with or without speed

table reset.

▪ Transponder Equipped ready for transponding ID on your layout.

▪ Power-on Motor Isolation Protection, helps prevent damage to your decoder.

▪ DCC Compatible.

▪ FCC Part 15, Class B RFI compliant.

▪ Operates on DCC track voltage 9V minimum. to 22V maximum.

Parts List:

1 DH127MT Mobile Decoder

1 Instruction Sheet

Installation Instructions: Visit www.digitrax.com for the latest

information and technical updates. Refer to Figure 1 for the decoder

layout.
