Name: SoundTraxx 810113 35mm x 16mm x 8mm Oval Speaker
Brand: Soundtraxx
SKU: Speakers & Enclosures
Price: 12.76 USD
Availability: InStock

SoundTraxx 810113 35mm x 16mm x 8mm Oval Speaker

$15.95 $12.76

2 in stock

Description

Oval Speaker

- Dimensions: 35mm x 20mm x 6mm
- Frequency Response: 500-12kHz
- Peak Power: 1 Watt
- Ohms: 8

1414435307543 - Soundtraxx 810154 16Mm X 12Mm X 11.25Mm(D) (0.629921" X 0.472441" X (0.44291339") Mini Cube Speaker - Rj's Trains

SoundTraxx 810154 Mini Cube Speaker & Baffle

$15.95 $12.76

7 in stock

Description

Dimensions: 16 x 12 x 11.3mm(D)

0.629921" x 0.472441" x (0.44291339"

Frequency Response: 300Hz - 20kHz
Peak Power: 1 Watt
Impedance: 8 Ohms

Though Soundtraxx does not directly say it on the speaker page. It recommends to wire the mini speakers in Series.

SoundTraxx 810153 28mm x 4.5mm(D) (1.10236" x 0.177165") Round Speaker

$12.95 $10.36

This high-output speaker has great range and is suitable for HO and larger models.
Dimensions: 28 x 4.5mm(D) Frequency Response: 320Hz - 18kHz Peak Power: 2 Watt Impedance: 8 Ohms

There is a ton of great information that you can utilize on the manufactures website that can aid you in your choice and installation of a product.

http://www.soundtraxx.com

SoundTraxx 810138 16mm x 35mm (0.629921" x 1.37795") Oval Speaker Gasket Kit (4 pack)

$6.95 $5.56

3 in stock

Description

These double-sided adhesive gaskets take the mess out of mounting our 16mm x 35mm speakers.

- 4 gaskets per pack

SoundTraxx 810119 28mm (1.10236") Speaker Gasket Kit (4-pack)

$6.95 $5.56

2 in stock

Description

These double-sided adhesive gaskets take the mess out of mounting 1" (28mm) speakers.

- 4 gaskets per pack

For use with Soundtraxx Speaker # 810054 or other manufactures with similar size

RailMaster Hobbies, DS1425-8, 8 Ohm Speaker W/Enclosure, 16x27x9mm

RailMaster Hobbies, DS1425-8, 8 Ohm Speaker W/Enclosure, 16x27x9mm

$12.50 $9.99

1 in stock

DS1425-8: 8 ohm, 2 watt, 16mm x 27mm x 9mm(0.63” x 1.06” x 0.35”).

Great speaker for smallspaces, such as switchers.

SoundTraxx 810130 27mm Mega Bass Speaker

$12.95 $10.36

5 in stock

Description

This speaker is great for boosting the low frequencies in most diesel and “big” steam sounds.

Dimensions: 27 x 14.3mm(D)
Frequency Response: 350Hz - 20kHz
Peak Power: 2 Watts
Impedance: 8 Ohms

SoundTraxx 810155 13mm x 9mm x 8.85mm(D) (0.511811" x 0.354331"x 0.3484252" ) Mini Cube Speaker

$15.95 $12.76

3 in stock

Description

Dimensions: 13 x 9 x 8.9mm(D)
Frequency Response: 100Hz - 10kHz
Peak Power: 75mW
Impedance: 32 Ohms

Though Soundtraxx does not directly say it on the speaker page. It recommends to wire the mini speakers in Series.

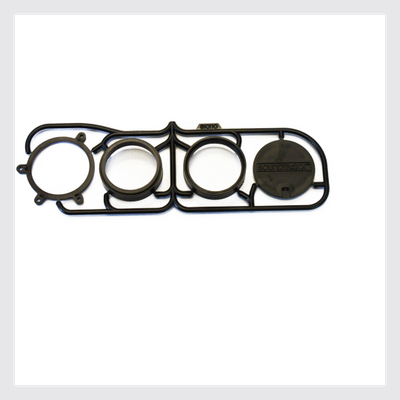

SoundTraxx 810110 28mm (1.10236") Speaker Baffle Kit

$6.95 $4.99

4 in stock

Description

28mm (1.10236") Snap-Together Speaker Baffle works with SoundTraxx or other similar diameter speakers. The baffle enhances low frequency tones for greater railroading sound enjoyment.

Includes mounting ring, two extension rings for added depth, and a bottom cap with provision for wiring the speaker.

SoundTraxx 810114 30mm X 5.3mm(D) (1.1811" X0.208661") Round Speaker

$12.95 $10.36

2 in stock

This small 1 watt round speaker is just 30mm dia (1.2") and 5.5mm deep. Frequency Response: 500-12k Hz.

Dimensions: 30 x 5.3mm(D)
Frequency Response: 490Hz - 10kHz
Power: .5 Watt (Nominal) 1 Watt (Peak)
Impedance: 8 Ohms

There is a ton of great information that you can utilize on the manufactures website that can aid you in your choice and installation of a product.

http://www.soundtraxx.com

SoundTraxx 810162 Mini Cube 3 Speaker & Baffle

SoundTraxx 810162 Mini Cube 3 Speaker & Baffle

$18.95 $15.37

4 in stock

Our newest speaker is the Mini Cube 3. We just love the amazing sound that you can get out of this tiny speaker. The Mini Cube 3 is only 12 x 5.5 x 3mm, but the sound it produces will blow your mind!

George has shown this speaker off in YouTube videos with our new N-Scale TSU-KN1 decoder. Visit the videos tab on this page or search: SoundTraxx TSU-KN1, on YouTube to see the install and to hear this speaker in action!

Dimensions: 12.5 x 5.5 x 3mm(D)
Frequency Response: 800Hz - 20kHz
Power: 0.3 Watts (Nominal) 0.5 Watts (Peak)
Impedance: 8 Ohms

Note: For best performance, seal the speaker to the baffle with a light RTV-style adhesive.

To avoid damaging the 0.5 watt Mini Cube 3 speaker, they are best used in pairs and wired in series.

The Video Below Show an installation on a F3A N Scale install, which includes these speakers

SoundTraxx, 810078, 40 x 28.5 x 11.3mm, Oval Speaker

$15.95 $13.50

2 in stock

Description

Oval Speaker

- Dimensions: 40 x 28.5 x 11.3mm
- Frequency Response: 250-20kHz
- Peak Power: 1 Watt (Nominal) 2 Watts (Peak)
- Ohms: 8

SoundTraxx, 810053, 20mm (3/4"), Round Speaker

$12.95 $10.95

5 in stock

This high-output speaker has great range and is suitable for N and larger models.

Dimensions: 20 x 3.2mm(D) (0.787402"x 0.125984")

Frequency Response: 475Hz - 9kHz
Power: 1.0 Watt
Impedance: 8 Ohms

There is a ton of great information that you can utilize on the manufactures website that can aid you in your choice and installation of a product.

http://www.soundtraxx.com

SoundTraxx, 810089, 15mm (1/2"), Round Speaker

$12.95 $10.95

4 in stock

This high-output speaker has great range and is suitable for N and larger models.

Dimensions: 15 x 3.5mm(D) (.59" x 0.136")

Frequency Response: 780Hz - 15kHz
Power: 0.3 Watt (Nominal) 0.5 Watt (Peak)
Impedance: 8 Ohms

There is a ton of great information that you can utilize on the manufactures website that can aid you in your choice and installation of a product.

http://www.soundtraxx.com

RailMaster Hobbies, DSM-8, 8 Ohm Base Reflex Speaker, 18x68x14.3mm

RailMaster Hobbies, DSM-8, 8 Ohm Base Reflex Speaker, 18x68x14.3mm

$12.50 $9.99

4 in stock

Model: DSM-8

Info: Bass reflex speaker (wide): For HO scale cab units, S and O scale locomotives

Ohms: 8 ohm

Watts: 2 watt

Dimensions: 18mm x 68mm x 14.33mm(.70” x 2.69” x .56”)

RailMaster Hobbies, DLG-8, 8 Ohm Speaker W/Enclosure, 22x58x9.3mm

RailMaster Hobbies, DLG-8, 8 Ohm Speaker W/Enclosure, 22x58x9.3mm

$12.50 $9.99

2 in stock

Model: DLG-8

Info: Bass reflex speaker (wide): For HO scale cab units, S and O scale locomotives. Compatible with Digitrax, Soundtraxx, LokSound 4.0 and Select

Ohms: 8 ohm

Watts: 1 watt

Dimensions: 22mm x 58mm x 9.3mm (.86” x 2.28” x .36”)
