Kadee HO 35 Short (1/4") Overset Shank W/ 233 Draft Gear Boxes (2 pair)

Regular price $4.55 $3.99

Availability: Available Unavailable

Product Type: Couplers

Product Vendor: Kadee

Product SKU:

Description The #35 Kadee® Magne-Matic® Coupler features a very strong plastic insulated coupler, #621 Torsion Centering Spring & insulated #233 Draft Gear Box. 30-Series Kadee® Magne-Matic® Couplers are designed for body mounting either above or below the mounting platform, with...


Product Details

Description

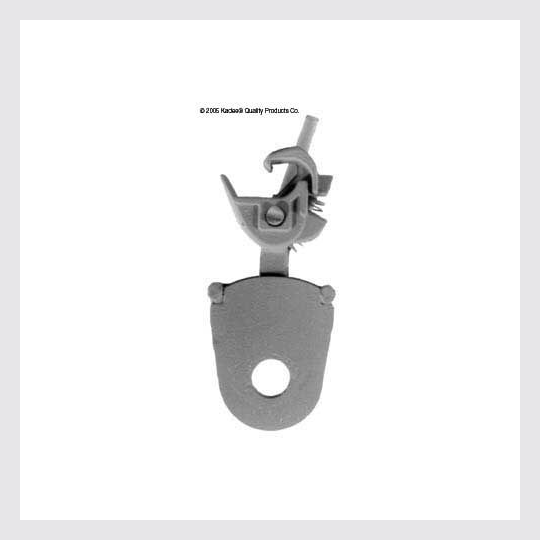

The #35 Kadee® Magne-Matic® Coupler features a very strong plastic insulated coupler, #621 Torsion Centering Spring & insulated #233 Draft Gear Box.

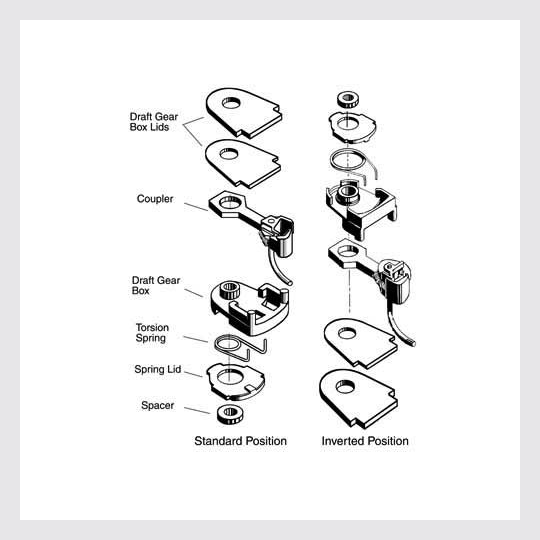

30-Series Kadee® Magne-Matic® Couplers are designed for body mounting either above or below the mounting platform, with or without Draft Gear Box Lid and with Draft Gear Box Lid either on top or bottom.

Note: The 30-Series Torsion Spring can be mounted either below or above the coupler shank, but must always be mounted between the Coupler Spring Lid and Draft Gear Box.

Two pair per package

  • Plastic Head
  • Standard Head
  • #233draft gearboxes. 2 pair.

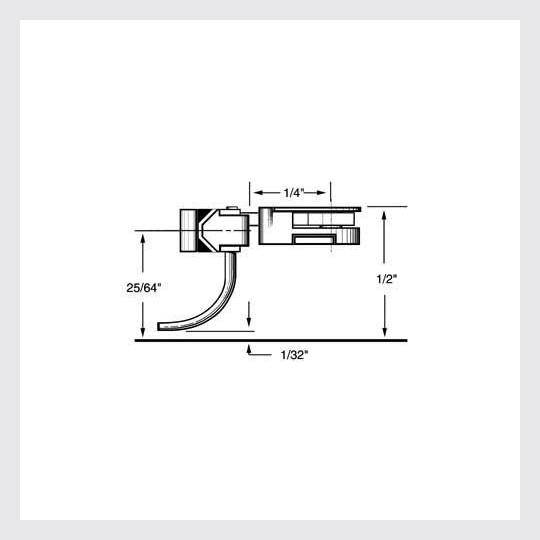

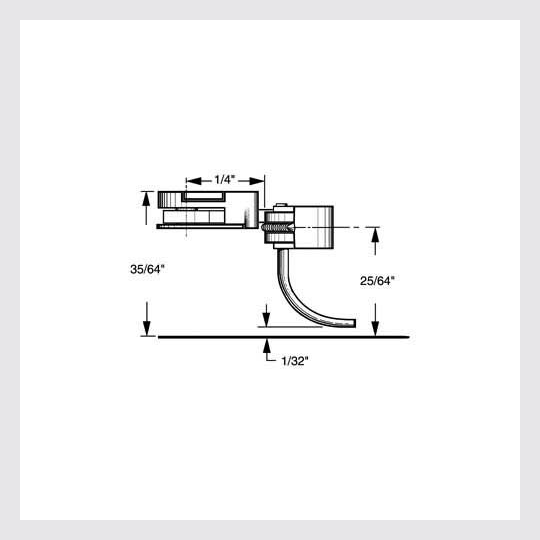

  • Short Overset Shank
Notes:
#35 Coupler Equivalent Whisker® Coupler Option: Use the #252 Small Snap-together Gear Box & #145 Whisker® Coupler to make an equivalent coupler to the #35 Coupler. The advantages to using the #252 Gear Box and a #145 Whisker® Coupler are; the #145 Whisker® Metal Coupler is stronger & has a built in Whisker® centering spring, combined with the #252 Snap-together Gear box makes assembly simple and easy.
