Kadee HO 22 Medium (9/32") Overset Shank Coupler (2 pair)

Regular price $4.90 $3.99

Availability: Available Unavailable

Product Type: Couplers

Product Vendor: Kadee

Product SKU:

Description Multi-Purpose Insulated Coupler Kit for Talgo truck or body mounting on locomotives and rolling stock. - 4 Couplers- 4 No.5 Gear Boxes and Lids- 4 20-Series Gear Boxes and Sleeves- 4 #212 Talgo Truck Adaptors- 4 Bronze Centering Springs-...


Product Details

Description

Multi-Purpose Insulated Coupler Kit for Talgo truck or body mounting on locomotives and rolling stock.

- 4 Couplers
- 4 No.5 Gear Boxes and Lids
- 4 20-Series Gear Boxes and Sleeves
- 4 #212 Talgo Truck Adaptors
- 4 Bronze Centering Springs
- 4 2-56 Screws

The 20-Series Kadee® Magne-Matic® Couplers are designed for either Talgo (truck) or body mounting.

The #22 Kadee® Magne-Matic® Coupler features a very strong plastic isolated coupler, #634 Centering Spring, (same gear box as the NO.5® Coupler), insulated #232 Draft Gear Box and Lid with side and center screw holes for mounting and the (20-Series draft gear box) insulated #213 Universal Adaptor Plate.

The #22 Coupler easily installs in existing Talgo-mounted draft gear boxes with supplied #212 Talgo Truck Adaptors or can be body mounted with supplied #232 draft gear box (NO.5® Draft Gear Box) with side and center screw holes for mounting or with the supplied #213 Universal Adaptor Plate (20-Series draft gear box).

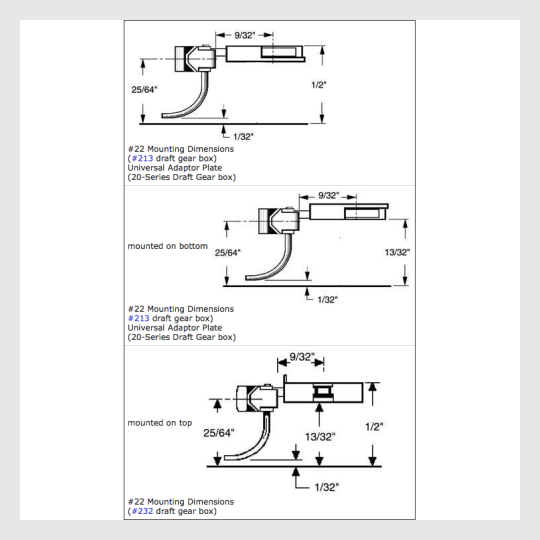

Note: The 20-Series assembly may be mounted from the top or mounted from the bottom but the #634 Centering Spring must be always mounted on top of coupler shank.

Two pair per package



Kadee Website:

https://kadee.com/html/20&30-serins.pdf
