Digitrax, DN147K1C, 1 Amp/2 Amp Peak, For Most Many Kato N Scale Locomotives
- Low stock - 6 items left
- Inventory on the way

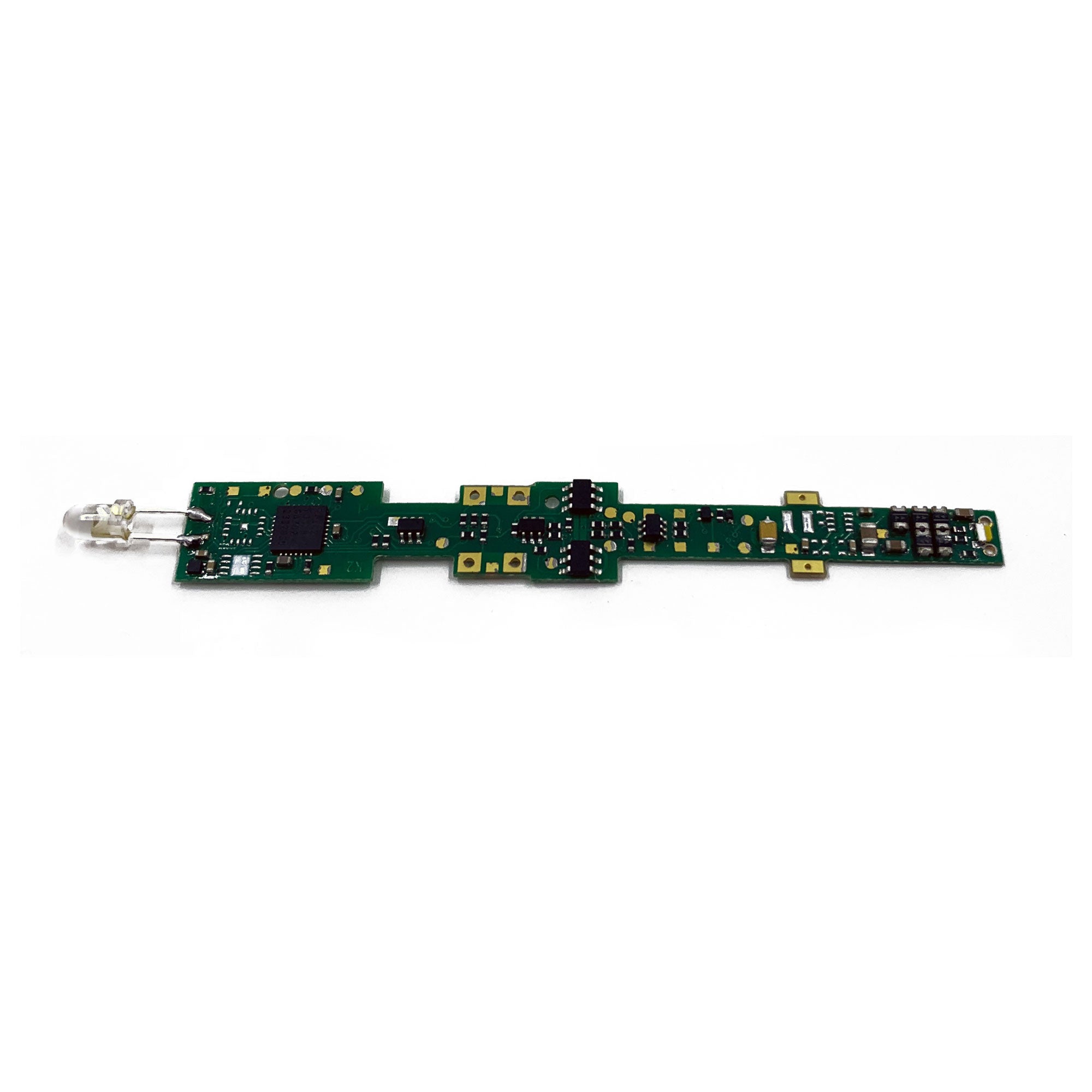

DN147K1C
Fits many Kato N-locomotives
N Scale
Mobile Decoder
1.0 Amp/2 Amps Peak
4 FX3 Functions, 200ma output
Features:
▪ Drop-in light board replacement decoder for Kato “K1” form-factor boards,
allows decoder to be moved between different locomotives.
▪ Series 7 Enhanced Decoder Features.
▪ XF expanded function capability, allows user remap of function keys 0-28 to
function output leads.
▪ Firmware may be user updated using a Digitrax USB equipped Command
Station with Sound Loader software in decoder IPL mode.
▪ 4 Digitrax FX3 Functions-Control lights and functions for prototypical light-
ing effects and on/off control.
▪ Configurable FX3 Pulse Function available on all function outputs.
▪ On board white leds for headlights.
▪ Digitrax LocoMotion® System – Lets your trains run like the real thing!
▪ 2 Digit and 4 Digit Addressing.
▪ Basic, Advanced & UniVersal Consisting.
▪ SuperSonic motor drive for silent operation.
▪ Direct and Operations Mode programming.
▪ Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment. Decoder Reset by CV8.
▪ Transponder Equipped ready for transponding ID on your layout.
▪ Power-on Motor Isolation Protection, helps prevent damage to your decoder.
▪ DCC Compatible.
▪ FCC Part 15, Class B RFI compliant.
▪ Operates on DCC track voltage typical 9V minimum. to 22V maximum.
Parts List:
1 DN147K1C Kato “K1” light board replacement decoder,
2 Straight Kato motor tabs,
1 Instruction Sheet
CAUTION: This “K1” form factor decoder fits many older legacy Kato
N-locomotives. More recent versions of the same shell/locomotive
type may require a different decoder. Check before purchasing. This
K1C uses the included straight tabs. An older K1D style factory board
must reuse shorter stepped motor tabs from the original Kato factory
light board.
Installation Instructions:
Visit www.digitrax.com for the latest information and technical updates. Refer to
Figure 1 for the decoder layout.
