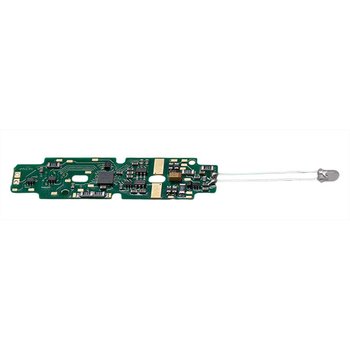

Digitrax, DN163K0E, 1 Amp Mobile Decoder, For Kato N Scale E5
- Low stock - 1 item left
Digitrax, DN163K0D, 1 Amp Mobile Decoder, For Kato N Scale E5
Board Replacement Decoder for Kato N-Scale E51.5 Amp/ 2.0 Amps Peak Motor Current Rating6 FX3 Functions-500mA Function Current RatingNote: DN163K0A will not fit in the new E5 locos.
Digitrax LocoMotion SystemScalable Speed Stabilization (Back EMF)SuperSonic motor drive for silent operationFX3Plug 'N Play designWhite LEDsTransponder equippedAll model programming with operations mode read backDecoder factory CV resetMotor isolation protectionBasic, Advanced, and UniVersal consisting2 and 4 digit addressing DCC compatibleFCC Part 15, Class B RFI compliant.
Features:
-
Designed to fit the Kato N scale E5
-
Golden-White LEDs for added realism
-
Decoder Lock equipped
-
1.5 Amp Continuous/2.0 Amp Peak Rating
-
6 FX3 Functions-500mA Function Current Rating
-
Size in inces: 0.5485” x 2.2165 w/o LEDs x .1015”
-
Size in mm: (13.9319mm x 56.2991mm w/o LEDs x 2.5781mm)
Specifications
- Current Rating-Motor
- 1.5 Amps (2.0 Amps Peak)
- Size
- 3.38" x 0.54" x 0.107" without LED (85.852mm x 13.716mm x 2.7178mm without LED)
- Installation
- Board Replacement (read more)
- Function Outputs
- 6-500mA
- Function Type
- FX3 (read more)
- Features
- Series 3 (read more)
- Warranty
- No Worries Warranty (read more)
