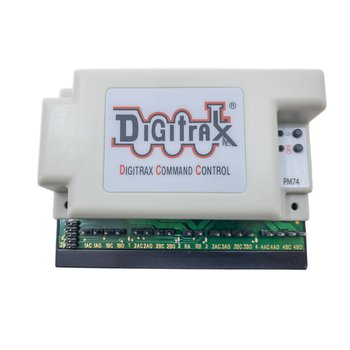

Digitrax, PM74,Power Manager with Occupancy and Transponding detection for 4 sub-districts
- Low stock - 4 items left
Features:
▪ 4 Power manager sub-districts (or DS sections), similar to PM42.
▪ Each DS section configurable for Auto-reverse or intelligent
short-circuit Power Management function.
▪ Each DS has Occupancy and Transponding detection capability.
▪ Occupancy usable by LocoNet compatible signal systems and e.g. PC-
based track state monitoring.
▪ Transponding provides mobile decoder Mainline Operations Mode
CV read/write programming on compatible Digitrax systems.
▪ Transponding identifies compatible Decoder addresses in each DS.
▪ All plug-in connectors for simple and easy installation and service.
▪ User defined as 4 DS reporting addresses in 2000+ DS range.
▪ Low-loss magnetic sensing of DCC track current.
▪ Easy setup with device Option Switches (OPSW) or LocoNet CV
programming.
▪ Powered by DCC track and 2mm DC jack, 10V min to 22V max.
▪ Configured to operate with DCS52, DCS100, DCS210, DCS210+,
DCS240 Command Stations, and DB210 and DB220 boosters.
▪ Optional Detection and Power status led connector for remote state
indication, compatible with e.g. LT5.
▪ Additional LocoNet Configuration modes using DT602 throttles.
