Train Control Systems, 1717, WOWSpeaker, 28mm x 18mm, with Enclosure
Train Control Systems

Train Control Systems, 1717, WOWSpeaker, 28mm x 18mm, with Enclosure

Regular price $19.95 Sale price $16.97

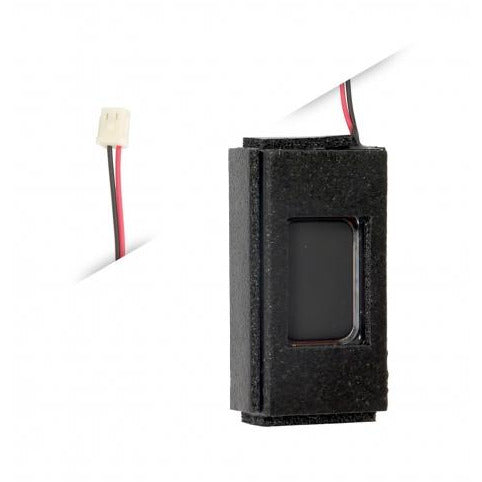

This 28mm x 18mm speaker is a tough little beast capable of pumping out 1.2 Watts of clear and accurate audio. This micro speaker comes packaged inside a foam-padded enclosure to maximize the volume while preventing distortion caused by vibration. Truly an impressive speaker in a small package!

This speaker also comes from TCS with 6-inch (152mm) long 32AWG wire and a 2-pin JST "SR" connector. This connector can be clipped off if not needed, but can be readily plugged into some products such as the WM-MB1 and WM-MB2 motherboards.

TCS WOWSound decoders use an audio amplifier capable of supplying up to 2 Watts of power to an 8 Ohm load at maximum volume. The amplifier(s) on a WOWSound product can support speakers with impedance ratings as low as 4 Ohms. A reduction in impedance will result in a more power (more Watts) being supplied to the speaker. This speaker is rated at 6 Ohms of Impedance and 1.2 Watts of continuous power. (See "Specs" for more details) It is recommended that you set your master volume to ~60% or less to prevent over-driving and damage to your decoder or speaker.

1.1" x 0.71" x 0.32" or 28mm x 18mm x 8.1mm
Sound Pressure Level
95 dB ± 3.0 dB at 1.2W, 10cm, 2.0 KHz.
Effective Frequency Band
500 Hz. to 20,000 Hz.
Power Rating
1.2W (Typical) 1.5W (Peak)
DC Impedance
6 Ω ± 20 % at 1.2W 2000 Hz.
